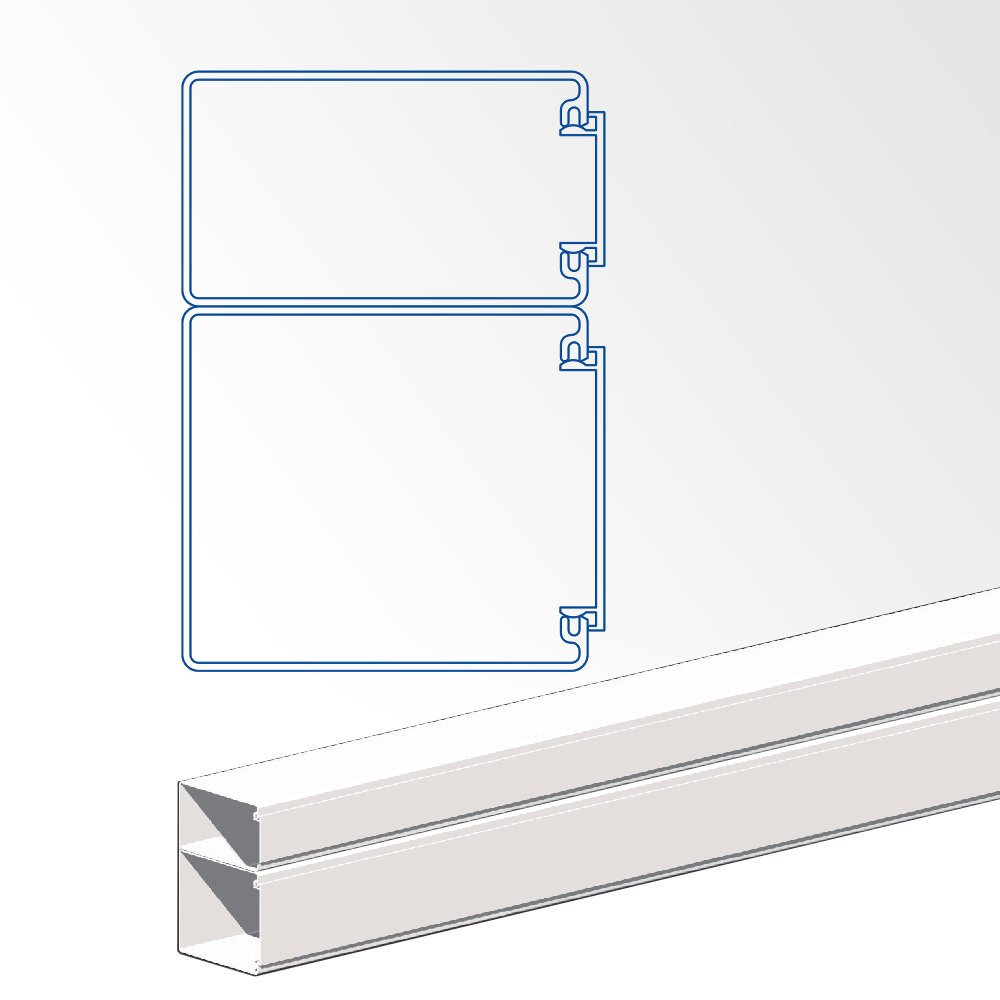

Profile lengths include covers.
3.1m - 146.2136
6.2m - 146.2166
Column Surrounds:
Site dimensions required,
Corner cover pieces included
Two Sides - 146.2926
Three Sides - 146.2936
Four Sides - 146.2946
Fabricated in two parts with provision for dropper feeds if required
Commonly requested factory fabricated components shown. Custom fabricated units a specialty. Image representational only

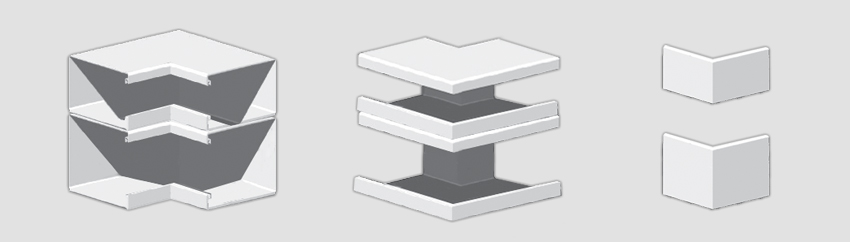

Internal Corner - 146.2306
External Corner - 146.2316. Covers included
Images representational only

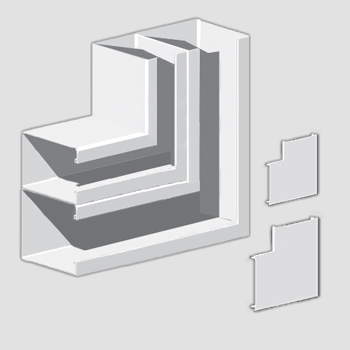

Flat Bend Data - 146.2406
When ordering Flat Bends be aware the upper channel is smaller inside.
Images representational only

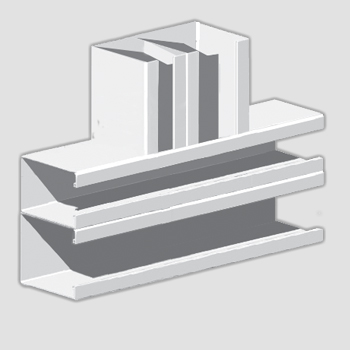

Flat T intersection data LEFT- 146.2506
Flat T intersection data RIGHT- 146.2516
Image representational only

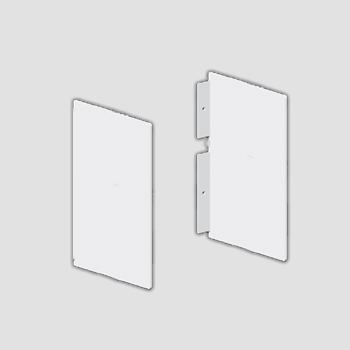

90-degree End Cap -146.2626
Rivet / Screw fix to profiles
Image representational only

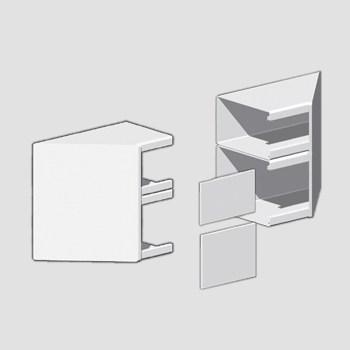

45-degree End Cap LEFT- 146.2606
45-degree End Cap RIGHT- 146.2616
Images representational only
Power & Data Fixing Plates - Pair
Upper power channel - 38.0040
Lower data channel - 70.0040
Joining Plates - Pair - 91.1106. Rivet / Screw fix to profile.
